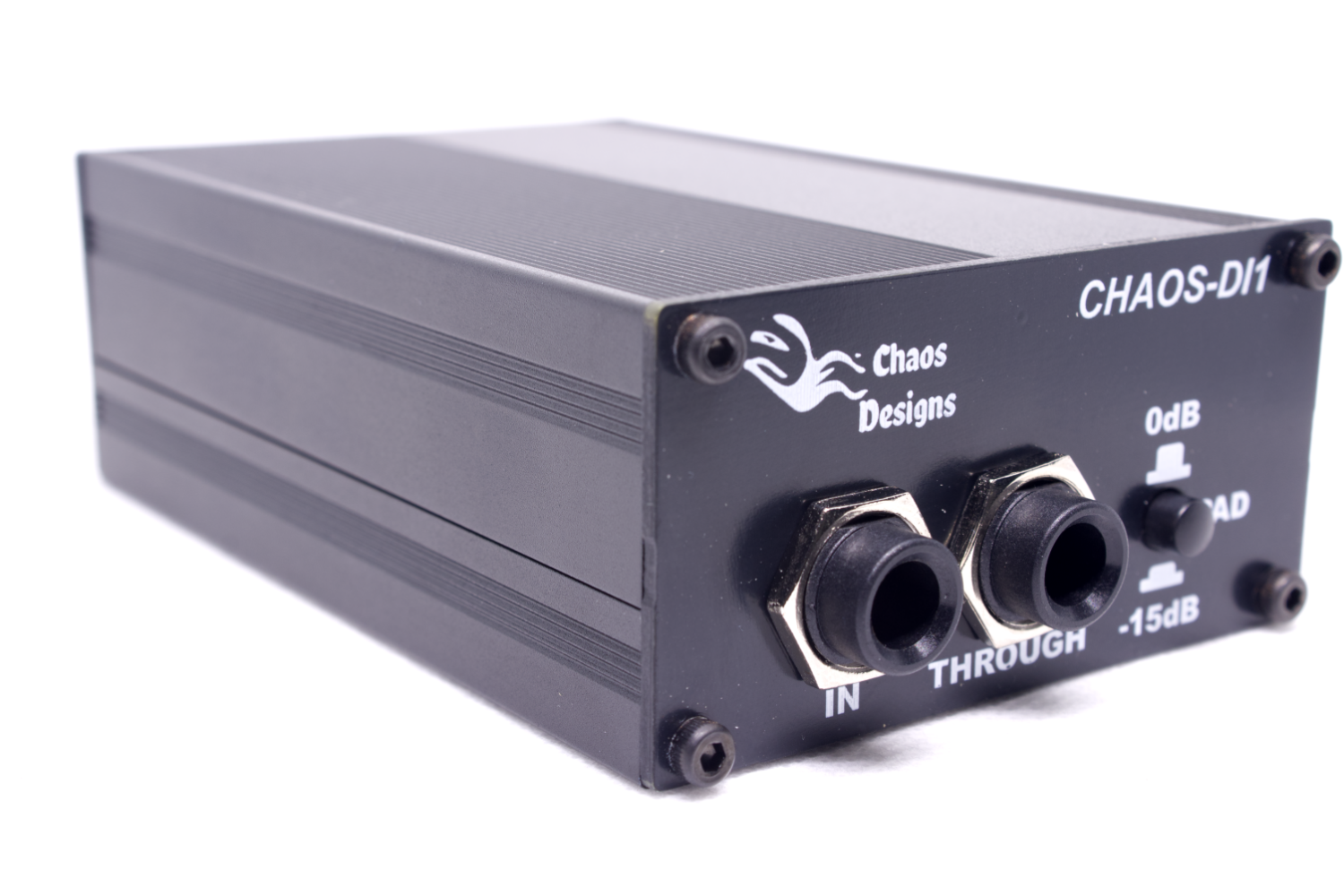

CHAOS-DI1 – 1 Channel Active DI Box (Professional Audio)
The CHAOS-DI1 is a compact, high-performance single-channel active DI box designed for professional live
sound and studio applications. Powered directly by phantom power, it delivers clean, transparent audio
conversion with the reliability engineers and musicians expect.
Key Features:
- 1 active channel – perfect for instruments or line-level sources
- Phantom powered – no external power supply required
- Transparent performance: flat frequency response from 10Hz – 95kHz
- Excellent signal clarity: 100dB signal-to-noise ratio
- Ultra-low distortion: THD <0.01%

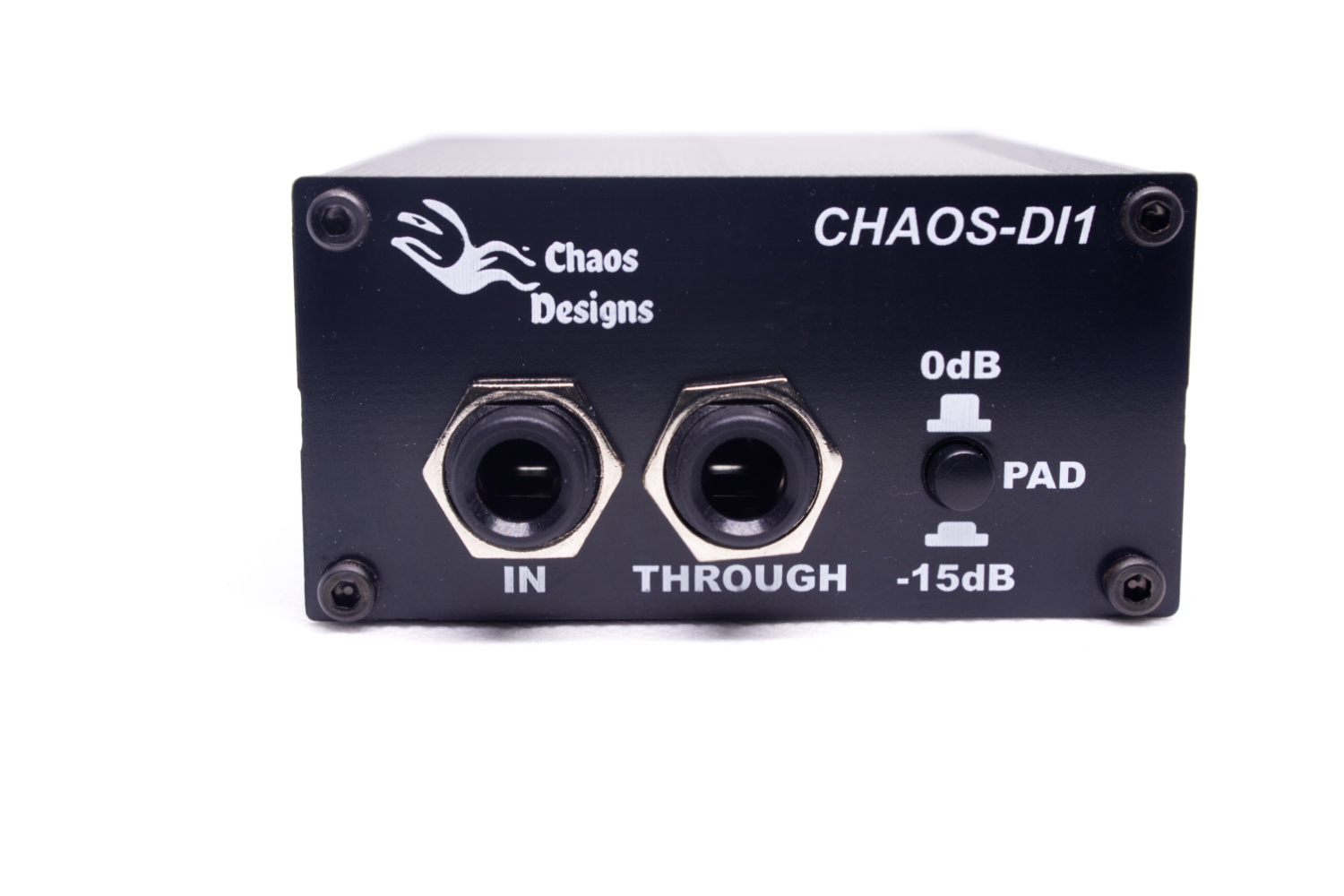

- Through jack for direct connection to amplifiers or monitoring
- Switchable -15dB pad for handling stronger signals

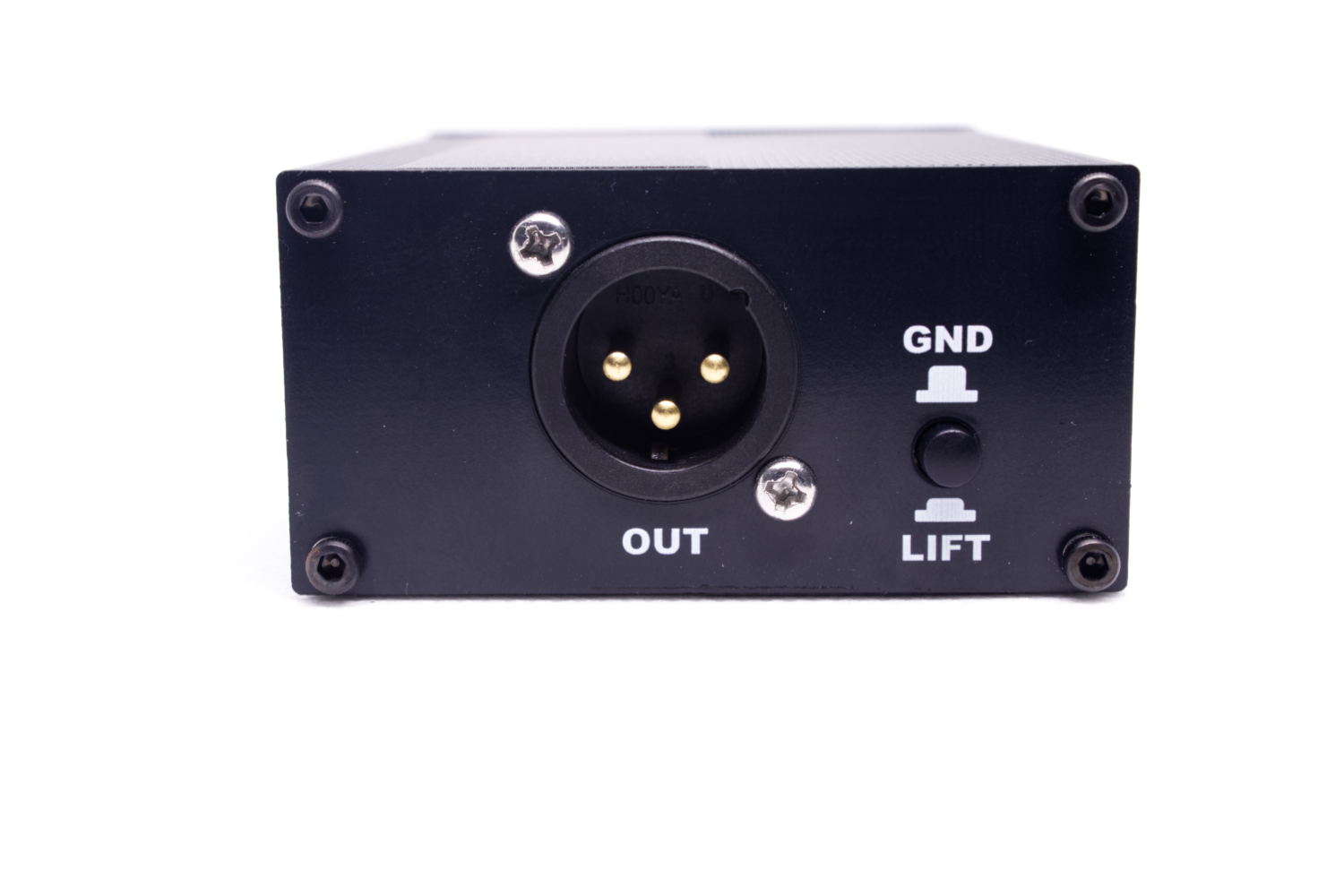

- Ground lift switch to eliminate hum and noise issues
- Compact, durable design for both stage and studio use
Specifications:
- Input Impedance: 10MΩ
- Output Impedance: 100Ω
- Signal-to-Noise Ratio (SNR): 100dB
- Total Harmonic Distortion (THD): <0.01%
- Frequency Response: 10Hz – 95kHz (flat)
- Pad: -15dB
- Ground Lift: Yes
- Power: 48V phantom power (via XLR)
- Connections: Input jack + through jack, balanced XLR output
- Dimensions: 111mm (L) x 69mm (W) x 35mm (H)
Warranty: Includes a 1-year limited warranty for peace of mind.
The CHAOS-DI1 is built for professional use, making it a reliable choice for live performances, recording
sessions, and installations where quality and consistency are critical.
Made in New Zealand – engineered with precision and quality.
